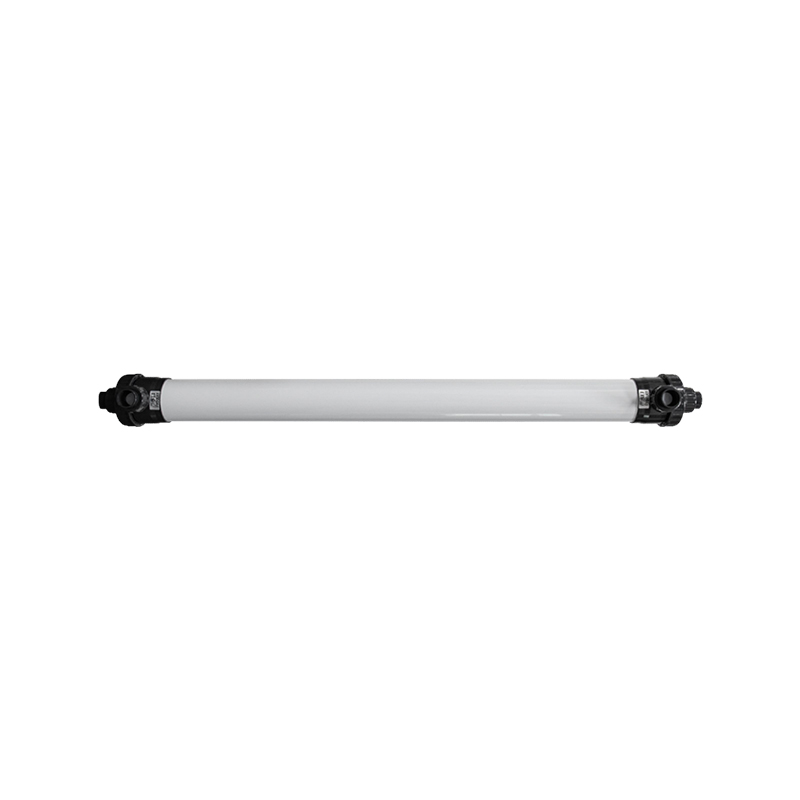

JZ-4040

Brand：Orange Filtration

Model：JZ-4040

Inquiry

Prev: Korean Quick-Connect Filter Cartridge

Next: RO-100-H

Product Details


Industrial Water Treatment (4).png

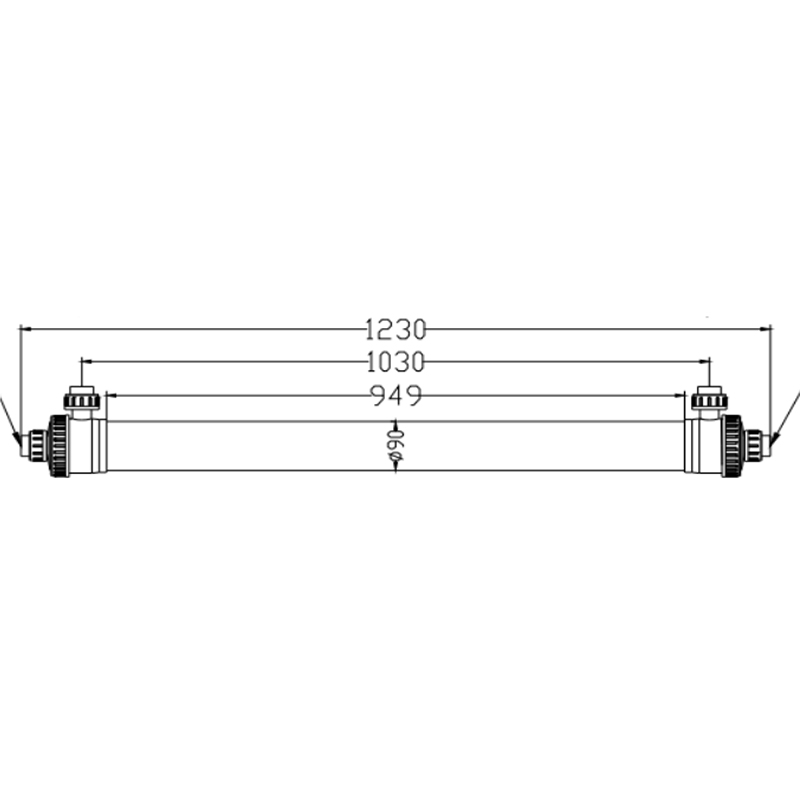

SIZE

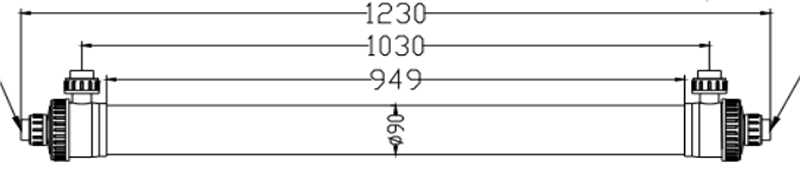

Industrial Water Treatment (3).png

Product Parameters
Membrane module model	JZ-4040
Membrane material	PVC alloy
Fiber Inner/Outer Diameter	1. 0mm/1.7mm
Molecular Weight Cut-off (MWCO)	100,000 Daltons
Design Water Production Capacity	200-600L/H
Effective Membrane Area (under pressure)	4. 2 m
Housing Material	UPVC
End-cap Material	Epoxy resin
Inlet/Outlet Connections	DN25 (Ø32)
Conditions of Use
Pretreatment	50-150um
Operation Mode	Inside-Out Filtration Operation
Operating Pressure	0.02-0.2Mpa
Maximum Feed Pressure	0. 3MPa
Maximum Transmembrane Pressure (TMP)	0. 2MPa
Feed Water pH	2-12
Continuous Residual Chlorine Tolerance	100 ppm
Intermittent Residual Chlorine Tolerance	200 ppm
Operating Temperature Range	1℃-40℃
Feed Water Quality	Turbidity ≤ 15NTU
Product Water Quality
Product Water Turbidity	< 0.1 NTU
Silt Density Index (SDI)	<1
Particles (>0.2 μm)	remove 100%
Microorganisms & Pathogens	remove 99.99%
Backwash Design
Backwash Frequency	Every 15-60 minutes
Backwash Pressure	≤0.2 MPa
Backwash Flow Rate	100-150 L/(h·m²)
Backwash Chemical Dosing	15-20 ppm NaClO
Chemical Backwash Frequency	Automatic dosing per backwash cycle (recommended)
Chemical Cleaning Design
Chemical Cleaning Frequency	Once every 1-4 months
Acid Cleaning Agent	Citric acid, oxalic acid or hydrochloric acid (pH=2 solution)
Alkaline Cleaning Agent	0.5% NaOH + 0.1% NaClO (pH=12 solution)

Note: *Testing was conducted under standard municipal tap water conditions with turbidity <5 NTU as feed water.

Special Notes:

1、Test Data Accuracy:The above performance data are test values obtained under specific feed solution and operating conditions, reflecting the capabilities

of Orange Filtration products. Orange Filtration guarantees the authenticity and accuracy of these data.

2、Application Variability:As ultrafiltration (UF) membranes may be applied to different water quality conditions, the provided data represent general ranges

rather than fixed values. For precise design requirements, please consult Orange Filtration sales representatives.

3、Product Updates & Revisions:Orange Filtration continuously engages in product R&D and technical improvements. Consequently, future product

iterations may vary. Orange Filtration reserves the right to modify, update, or remove the above data without prior notice.
